Fast Calibration & PID, rationalizing the use of your resources
– General purpose positioner
– For rotary and linear valves
– For single or double acting actuators
– Liquid crystal digital display
– Fast Calibration
– Made with engineering plastic
– Aluminum pneumatic parts
– Auto calibration feature
– Easy mounting at any angle
– Fixing support for various types of actuators
– Current valve position in % coverage
– Control input 4 to 20mA
– Feedback output with position confirmation (optional)
– Current valve position in % opening
– The position command setpoint
– Feedback position in % or mA
– Alternately current position/setpoint
– Quick access to facilitate fine-tuning GP, TR and TD parameter values
– Control input 4 to 20 mA
– HART control input (optional)
– Feedback output with position confirmation (optional)
– PNP output or mechanical contact

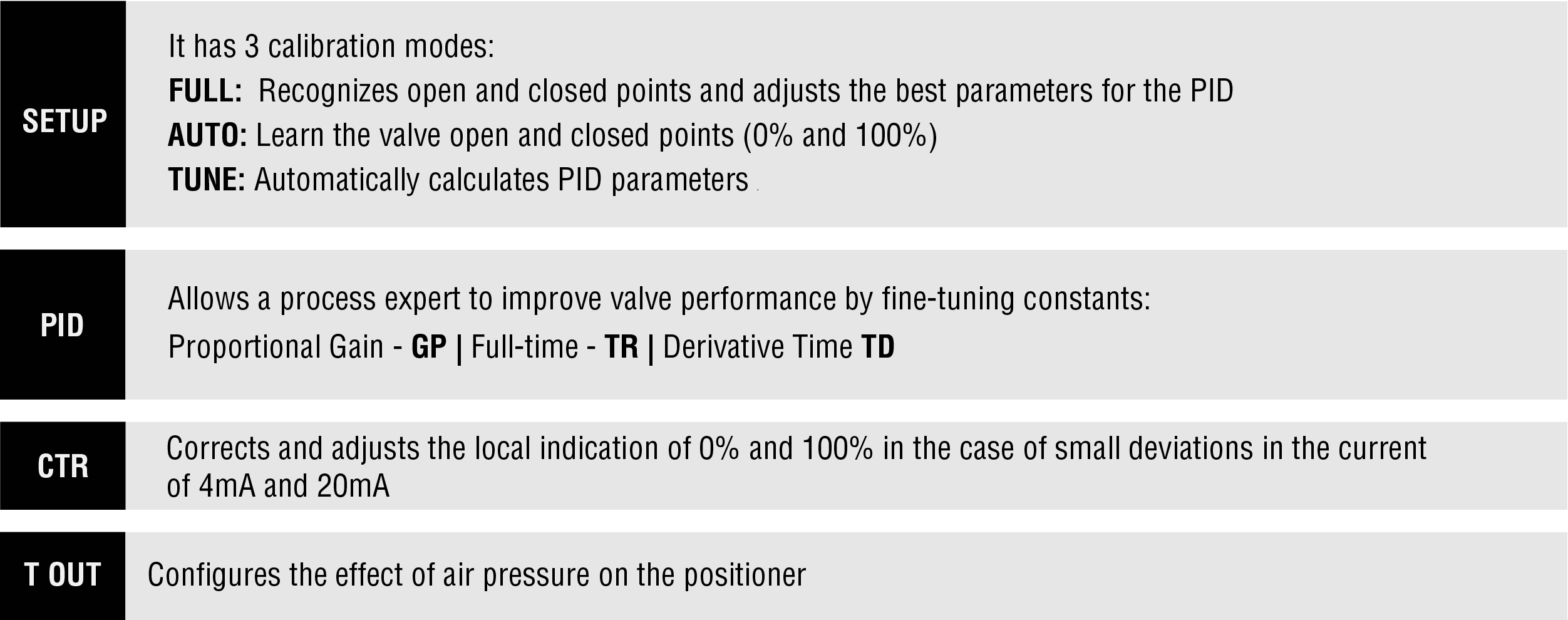

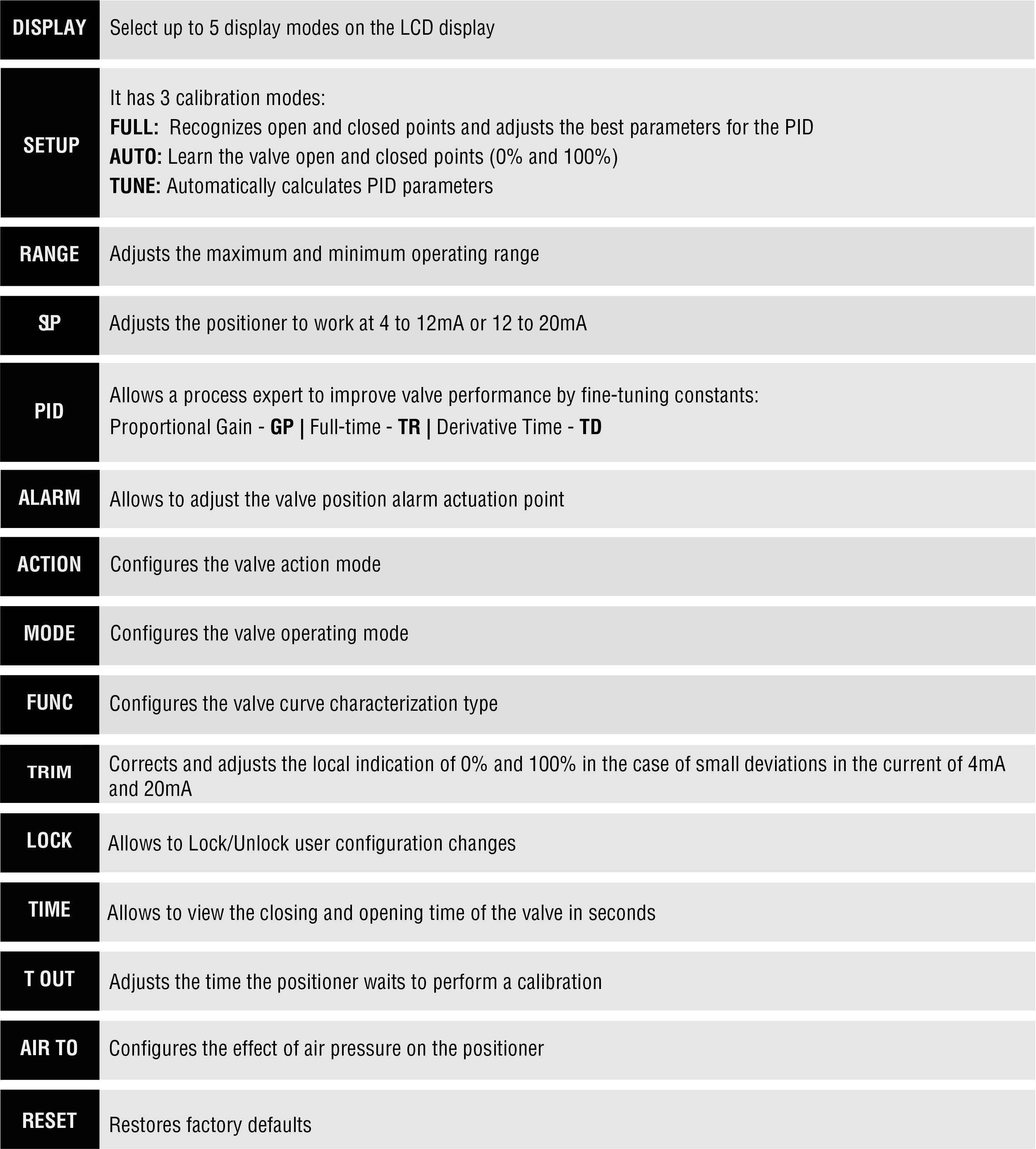

Alternatively the positioner can be configured using push buttons
